ZKTeco MA500 Vandal Resistant Fingerprint Access Control Terminal
Zoom image

ZKTeco MA500 Vandal Resistant Fingerprint Access Control Terminal

Not rated yet

An advanced vandal resistant fingerprint access control terminal, equipped with a robust metal housing and durable backlit keypad, perfect for securing access to restricted areas.

  • £199.99
In stock (3 items available)



ZKTeco MA500 is an advanced biometric access control terminal that could be operated in standalone mode as well as networked through TCP/IP or RS485 for software management. Equipped with a robust metal housing and durable backlit keypad, MA500 is vandal resistant and reaches IP65 protection degree which makes it suitable for installation in high traffic and harsh environments.

Apart from interfaces to connect with electric lock, door sensor, alarm and exit button to combine a standalone door access system, the wiegand output enables MA500 to connect with any 3rd party access control panels for working as a wiegand fingerprint reader, it's value added and very easy and to replace conventional proximity or keypad access control system by biometric technology.

Embedded with latest firmware, MA500 supports ZKAccess3.5 management software which has versatile features and powerful functions.


Vandal resistant & IP65 waterproofed, Ideal for outdoor installation
Large storage capacity up to 3,000 fingerprints, 30,000 proximity cards and 100,000 logs
Able to connect specially designed FR1200 fingerprint slave reader

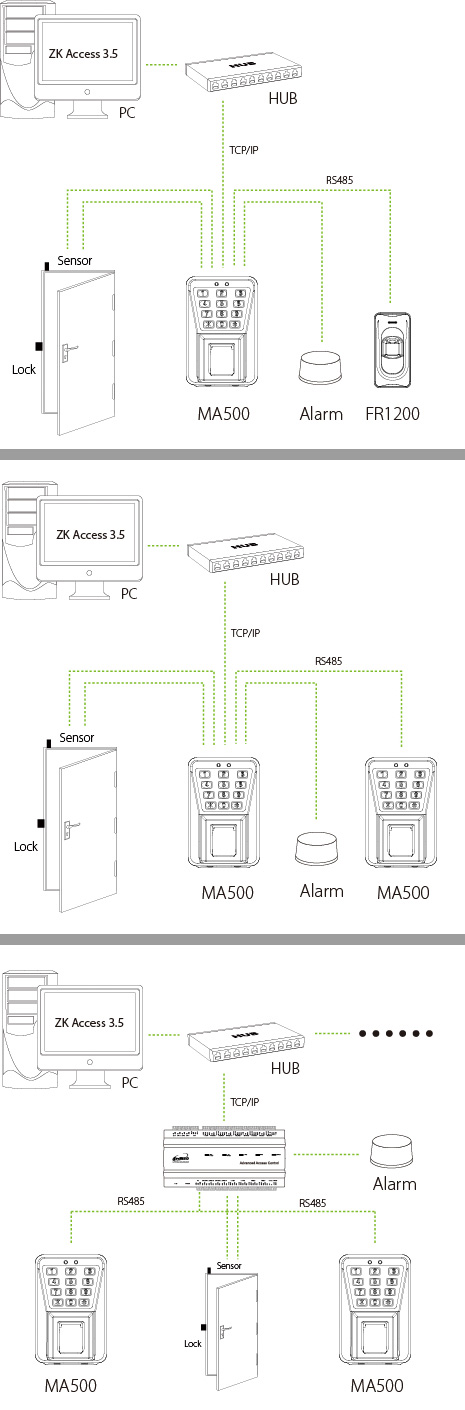

Combine master and slave system to secure the entrance and exit with dual biometric authentication and by RS485
Support Anti-passback to maximise security level
Easy to integrate with existing system. Wiegand output is connectable to most of the access control panel brands
Provide various types of alarms, such as, door sensor alarm, duress alarm etc
Free Pull SDK available for integration

System Configuration


Fingerprint Capacity 3.000
ID Card Capacity 30.000
Log Capacity 100.000
Sensor ZK Optical Sensor with protective cover
Proximity ID card
Relay contacts Lock control, Alarm, Door sensor, Exit Button
LED Indicator Green / Red
Oper. Temp 0°-45°C
Oper. Humidity 20%-80%
IP Rating IP65
Power 12V, DC 3A
Comm. Port TCP/IP, RS485
Wiegand Output
Fingerprint Algorithm
Type ZK Finger 10.0
Identification <= 2 seconds
Verification < 1 second
FRR < 1%
FAR <= 0.0001%
Dimensions 83 x 127,5 x 74 mm (L x W x D)
Weight 1.15 kg
O.S Linux
Applications AC (groups and TZ)


 For more information on this product range please email us at sales@eyenetwatch.com.

    • Weight
      1.1500 kg
    • SKU
  • Manufacturer
