Idemia / Safran / Sagem Morphosmart MSO 300
Next image
Zoom image

Idemia / Safran / Sagem Morphosmart MSO 300


Not rated yet

The Idemia / Sagem MorphoSmart™ 300 Series - or MSO 300 Series - is a family of high-end optical sensors comprising the MSO200, MSO300, MSO301, MSO350 and MSO351 versions. Based on Morpho’s unrivalled experience in the fields of electro-optics and forensic quality fingerprint processing algorithms. The MSO 300 Series covers a wide range of applications: enrolment, authentication and identification in industrial/commercial and governmental environments.

Worldwide shipping available on this product. Shipping to the following popular destinations is as follows:

Europe - £15 for 1 unit, £17.50 for 2 units

India - £45 for 1 unit, £50 for 2 units

Saudi Arabia - £35 for 1 unit, £40 for 2 units

United Arab Emirates - £30 for 1 unit, £35 for 2 units

United Kingdom - £9.95 for 1 unit, £14.95 for 2 units

  • £329.95
Qty:
Only 2 left in stock
OR



Idemia / Sagem Morphosmart MSO 300 Overview

The Morphosmart MSO 300 Series includes the following products:

MSO 200 - Serial connection version, with an internal database of 500 users as standard extendable to 5000 users with licences, optional security layer

MSO 300 - USB version, with an internal database of 500 users as standard extendable to 5000 users with licences and STQC certified, optional security layer.

MSO 301 - USB version, with an internal database of 500 users as standard extendable to 5000 users with licences, Fake Finger detection, optional security layer, FBI PIV IQS, MINEX compliant algorithms, Common Criteria by BSI and STQC certified

MSO 350 - USB version, with an internal database of 500 users as standard extendable to 5000 users with licences, Smartcard Reader, FIPS 201 and STQC certified, optional security layer

MSO 351 - USB version, with an internal database of 500 users as standard extendable to 5000 users with licences, Fake Finger Detection, Smartcard Reader, optional security layer and STQC certified

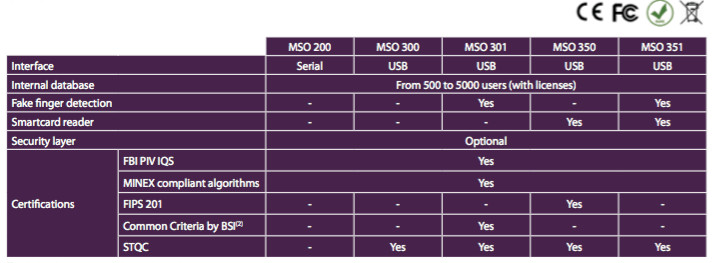

Below is a product details matrix, showing the different specifications for the readers:



The Idemia / Sagem Morphosmart MSO300 series performance capabilities have been certified at the highest levels by internationally recognised organisations (FBI, Indian STQC, BSI).

  • Excellent fingerprint image quality: large capture surface, FBI PIV IQS certification
  • Enrolment, 1:1 verification and 1:N identification capabilities
  • High accuracy: embedded FIPS 201 and MINEX compliant algorithms
  • Large internal database capacity: up to 5000 users (2 templates each)
  • Options: fake finger detection, smartcard reader, security features

The Idemia / Sagem MSO300 series covers a wide range of applications:

- Population registration or customer acquisition

- Logical access control in various sectors:

  • Banking and finance: secure and swift access to core banking applications or trading stations in dealing rooms
  • Enterprise: biometric PC login and Single-Sign-On solutions (no more passwords)
  • Healthcare: access to medical records restricted to authorised staff
  • Easy and secure payment applications
  • Fast, convenient, cashless payment at checkouts in stores, supermarkets or cafeterias
  • E-commerce secure payment
  • Cheque cashing services
  • Pension/benefit payments after ID verification or identification.



MSO 300 - Features at a Glance

  • Excellent fingerprint capture (23*23mm sensing area) and processing performance
  • All-in-one: integrates sensor + embedded feature extractor & matcher + internal user database
  • Multitask: suited for enrolment, authentication and identification
  • Large internal database capacity (up to 5000 users)
  • High accuracy
  • Patented Fake Finger Detection in option (MSO 301): Common Criteria certified by the BSI
  • Tailored for the registration of young or elderly people and manual workers
  • FBI PIV IQS certification on the whole range
  • Multiple template & image formats (ISO 19794-2, ANSI/INCITS 378, Proprietary ; ISO 19794-4, WSQ compressed in option…)
  • Security features to protect the communication channel between host and device (integrity check, data encryption)
  • Smartcard reader in option for Match-On-Card on MSO 350 & 351 (FIPS 210 certified)



MSO 300 - Technical Specification

  • A versatile device that carries out both enrollment and comparison (1:1 authentication and 1:N identification)
  • Excellent fingerprint capture and processing performance with the largest single fingerprint optical sensor on the market (23x23mm, 500 dpi, 256 grey levels)
    • Authentication < 0.7 sec (1)
    • Identification < 0.9 sec in 1:1000 mode(1)
    • Top grade solution to register young or elderly people, manual laborers (mining, textile, etc.)
  • Overall performance certified at the highest levels:
    • FBI PIV IQS (image quality)
    • MINEX compliant algorithms
    • FIPS 201
    • STQC
    • Common Criteria for fingerprint spoof detection (certified by BSI(2))
  • Accurate: the false acceptance rate (FAR) is configurable down to 10-8 - depending on the security requirements - and maintained regardless of number of users in database
  • Guides the user and automatically controls the image quality during fingerprint capture
  • Large internal database: standard capacity of 500 users (2 fingerprints each), extendable to 3000 (with MSO IDENTLITE license) or 5000 (with MSO IDENTPLUS license)
  • Multiple template & image formats:
    • ISO 19794-2, ANSI/INCITS 378, Morpho Proprietary
    • ISO 19794-4, WSQ compressed image
  • Options:
    • Smartcard reader
    • Fake finger detection (Common Criteria certified)
    • Security features to protect the communication channel between host and device (integrity check, data encryption)
  • Software packages
    • The MorphoSmartTM SDK is available to integrate easily the MSO 300 Series into various applications and use its embedded capabilities:
      • Available for Windows, Linux and Android Platforms
      • Includes a BioAPI interface
      • NB: Low level protocol (ILV) is also available
    • The MSO 300 Series can also be used with MorphoKitTM, advanced SDK for the capture and processing of fingerprint images, authentication and identification

 To contact us on this product please click here: sales@eyenetwatch.com or use our contact us form

    • Weight
      0.4000 kg
    • SKU
      000000001142
  • Manufacturer
    Idemia / Safran / Morpho / Sagem
  • MSO 300 Model / Variant
    MSO 200 - Serial Connection and STQC, MSO 300 - USB Connection, STQC, MSO 301 - USB with Fake Finger, FBI PIV IQS, MSO 350 - USB, smartcard with STQC certification, MSO 351 - USB, smartcard, fake finger detection and STQC, FBI PIVS
