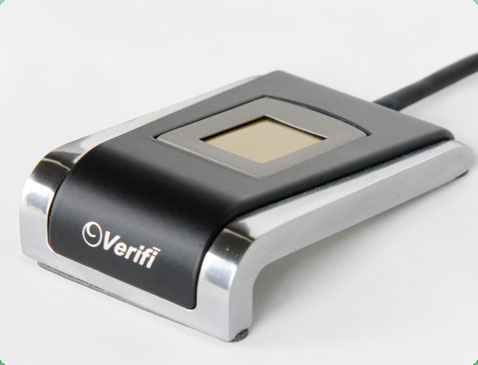

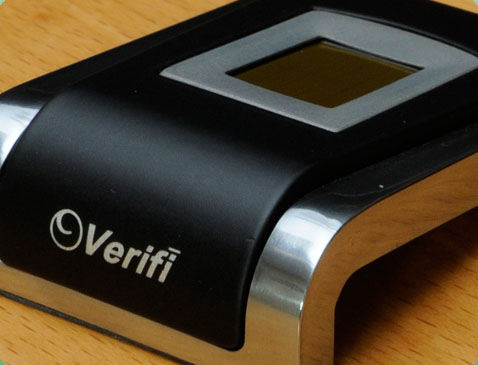

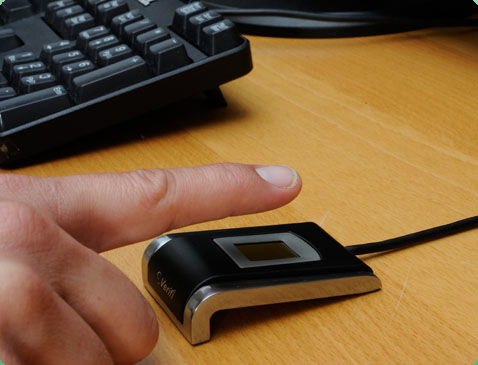

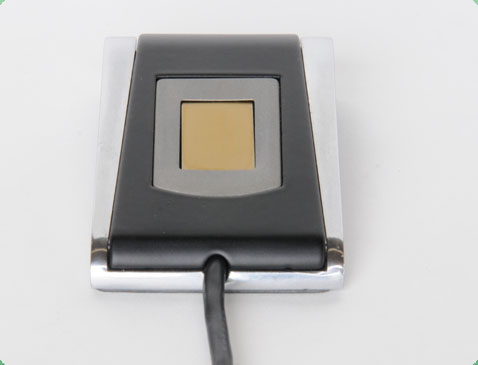

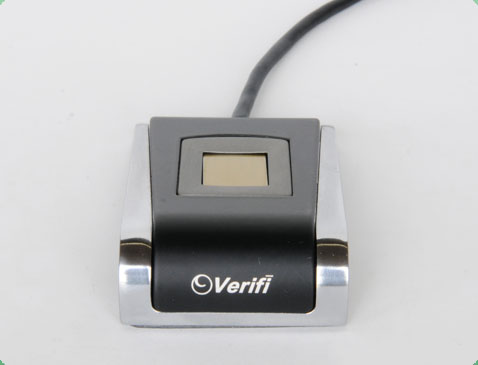

Zvetco Verifi P5100 Fingerprint Reader
Next image
Zoom image

Zvetco Verifi P5100 Fingerprint Reader


Not rated yet

The Zvetco Verifi P5100 is a new USB desktop device in the Verifi series of fingerprint readers. It uses the AuthenTec TCS1 sensor, the largest silicon sensor available, to give it the ability to be used in a wide variety of applications. Its sleek and ergonomic design make it perfect for desktop applications.



Buy more for less:
1-4 items £129.95 / each
5-9 items £125.95 / each save 3.08%
10 or more items £121.95 / each save 6.16%
  • £129.95
Qty:
Only 2 left in stock
OR


A Quick Look

  • 12.8mm X 18.0mm active sensing area
  • Uses Enhanced Imaging Technology
  • High sensitivity allows a thick protective coating to be applied to the surface of the sensor for environmental robustness
  • Scratch Resistant Aluminium Housing
  • Uses AuthenTec sensor that has been in production for over 5 years
  • RoHS Compliant


Breakthrough Innovation

The Verifi P5100 will give you the ability to biometrically identify users on a network, the internet or a single PC. The maturity of the electronics in this device means you can be assured that it will work for any application



Designed for you

Innovative flush mounting of the fingerprint sensor and the largest silicon sensor in the market combined with enhanced ESD handling makes the Verifi P5100 a unique, full featured device.



Eliminate Passwords

The Verifi P5100, in conjunction with Authasas, can solve your network security problems. When used with Authasas Enterprise Edition software, the P5100 becomes the hardware component of an Active Directory domain wide solution for eliminating passwords an instituting a company wide Single Sign-On solution.


Compatible Software

The Verifi P5100 is compatible with our single PC software as well as our client-server solutions. In addition, it can become part of select custom solutions.

  • Authasas Enterprise Edition
  • ActivIdentity® SecureLogin SSO



One to Many

Applications that need to search a large set of biometric data and identify an individual (1:N matching) require a larger fingerprint for comparison. The Verifi P5100, with it's 12.8mm X 18mm sensing area, provides more than enough data for these applications. Combined with our Verifi Identification System (VIS) it can identify individuals from a database of over 1 million users!


Product Features

Summary

  • High resolution 508 DPI sensor using AuthenTec's patented Active Capacitance Sensing Technology
  • Large 12.8mm X 18.0mm active sensing area
  • USB device for simple "Plug-N-Play" operation
  • Custom logo available
  • Solid aluminium design



AuthenTec's patented Active Capacitance Sensing Technology

provides a higher immunity to parasitic effects than passive capacitive sensing, delivering a high signal-to-noise ratio and the ability to capture fingerprints from the widest range of skin types.



ESD suppression

From the layout of the electronic printed circuit board to the metal housing, every measure has been taken to provide the end user with unmatched ESD protection. In addition, special ESD suppression components were included in the design of the Verifi P5100 to give it every advantage in this critical area.


Sleek Design

At only 1/3 of an inch thick, the unique design of the Verifi P5100 makes it highly functional when acquiring fingerprints while it looks impressive on the desktop.


Technical Specifications

Key Specifications

  • Patented active capacitance sensing technology
  • Enhanced Image Technology
  • Protective coating allowing > 2 million touches
  • Overcurrent protection- Scratch resistant



Device Performance

  • Interface: USB 2.0 Full Speed  Operating Systems: Windows 7, Windows 8, Windows 10
  • Windows Biometric Framework (Windows 7 Plug and Play): Yes


Fingerprint Reader Performance

  • Fingerprint Sensor: AuthenTec TCS1 with EIM (Enhanced Image Mode)
  • Sensor Technology: Active Capacitance Sensing, with EIM
  • Grey Scale Depth: 8-bit (256 levels)
  • Image Resolution: High resolution: 508 dpi
  • Image Area: 256 X 360 pixels, 12.8mm X 18mm
  • Surface Coating:> 2 million touches


Mechanical

  • Housing: Solid Aluminum
  • Finishing: Scratch resistant powder coating
  • Size (L,W,H): 70mm X 44mm X 18mm
  • Weight: 111 grams
  • Cable Length: 1.8 metre / 6 feet
  • Stress Relief: >10 lbs.
  • Logo Availability: Customised laser engraved logo available by special order


Environmental

  • ESD Resistance: +/- 15KV
  • Humidity: 5% to 90% RH @30°C
  • Temperature Range: 0°C to +70°C


Power Requirements

  • Voltage: 4.5V - 5.25V
  • Power Consumption: Active 50mA (typical)
  • Power Consumption: InActive 1mA (typical)


Regulatory Compliance

  • FCC: Part B
  • WHQL: Yes.
  • RoHS: Yes. Lead Free.
  • CE: Yes



To contact us on this product please click here: sales@eyenetwatch.com or use our contact us form

    • Weight
      0.1110 kg
    • SKU
      00000000120
  • Manufacturer
    Zvetco
