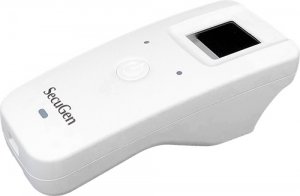

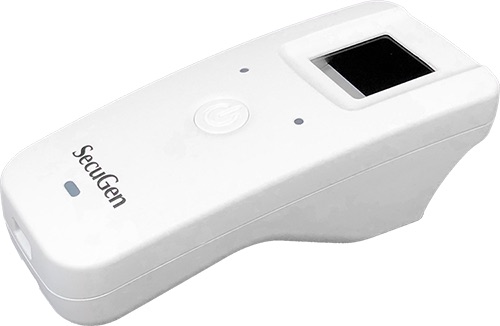

Secugen Unity 20 Bluetooth Fingerprint Reader HU20-ASF-BT


Not rated yet

**** Now compatible with Apple iOS for a truly outstanding user experience *****

The Secugen Unity 20 Bluetooth (HU20-ASF-BT) fingerprint reader is the world’s first elegantly designed, low cost, fully programmable Bluetooth fingerprint reader. Featuring a sleek wireless design with a premium FBI certified fingerprint sensor, the Unity 20 Bluetooth can securely transfer fingerprint data wirelessly to mobile devices for convenient biometric authentication, identification and enrolment.

Only 1 left in stock
  • £141.95
Qty:
  • Weight
    0.1000 kg
  • SKU
    00000000119
 For bulk order quantities please contact us via our contact form.

Thoughtful Design

The Secugen Unity 20 Bluetooth fingerprint reader (Manufacturers Part No. HU20-ASF-BT) can be used together with a mobile device (such as smartphone or tablet) to scan, enroll, and authenticate users without the need for cables or OTG adapters. The reader is built with the industry’s most rugged and patented optical fingerprint technology and yet is small enough to be carried in a pocket and held comfortably in one hand. It can also be used on the desktop with Bluetooth-enabled PCs. Thoughtfully designed, the device works in either direction so you scan your finger or another person’s finger without having to turn the device around.





For Developers

Developers can use Unity 20 Bluetooth also right out of the box by calling the built-in Fingerprint Management System (FMS) software’s simple API. Alternatively, the device can be custom programmed using its Linux development environment, its included MINEX-compliant fingerprint algorithms, OpenSSL cryptography libraries and 1 GHz CPU. The device can also store encrypted fingerprint templates and process them in a closed environment without their ever leaving the device for enhanced security.





Features

  • FBI Certified (PIV, FIPS 201, Mobile ID FAP 20 Compliant) meets FBI Image Quality standards
  • Bluetooth wireless connectivity for no-hassle, cord-free convenience
  • High-performance, maintenance-free optical fingerprint sensor
  • Rugged fingerprint sensor resistant to scratches, impact, vibration and electrostatic shock
  • Auto-On™ – automatic finger detection technology
  • Smart Capture™ – high quality fingerprint scanning of difficult fingers (dry, wet, scarred) in challenging environments and conditions such as under direct sunlight
  • Ultra-compact, lightweight and portable
  • Rechargeable lithium ion battery and micro USB cable for charging
  • Dual direction finger guide: for self-use or to scan other users by an administrator
  • Readily accessible for any finger
  • Fast and accurate verification
  • Latent print image removal (does not accept prints left behind)
  • Encryption of fingerprint templates (with SecuGen Proprietary templates)



Secugen Unity 20 Bluetooth Fingerprint Reader Technical Specifications:

Model: HU20-ASF-BT

Fingerprint Sensor / Module: U20-A / U20-ASF-BT

User Capacity: Up to 700 users (1,400 templates)

Image Resolution: 500 DPI

Image Size 300 x 400 pixels

Platen Size: 18.2 mm x 22.9 mm

Sensing Area: 15.2 mm x 20.3 mm

Image Gray Scale: 256 levels (8-bit)

Light Source: LED

Smart Capture Speed: 0.2 ~ 0.5 seconds

Biometric Standards/Specs: INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, FIPS 201, FBI (PIV, Mobile ID FAP 20), NIST MINEX, WSQ

Dimensions: 45.2 mm x 103.3 mm x 36.7 mm

Weight: 90 g

Bluetooth: Class 2 Module, Dual-mode Bluetooth / Low Energy (BLE) radio, Fully qualified Bluetooth 4.0, Supports 802.11 coexistence

Battery: Rated Capacity: 1000 mAh, Internal Resistance: ≤70 mΩ, Voltage: 4.2 V (charged), 2.75 V (discharge cut-off)

USB Interface: For charging

Temperature: Operating: -10°C ~ 60°C, Charging: 10°C ~ 45°C

Operating Humidity: 90% or less RH, noncondensing

Supply Voltage: Built-in battery or 5V DC (via USB)

Current Consumption: 200 mA (max, operating), 500 mA (max, charging & operating)

Compliance: FCC, CE, KC, RoHS, WHQL

Other Features (when used with SecuGen SDKs): Auto-On™, Smart Capture™, 360 Degree Fingerprint Rotation

Warranty: One year limited

Supported Operating Systems: Windows 10 / 8.1 / 8 / 7, Windows Server 2016 / 2012 / 2008 R2, Android 3.1 and above, Linux



For more information on this product range please email us at sales@eyenetwatch.com.
