Safran Morphosmart CBM E3 Fingerprint Module


Not rated yet
No reviews.

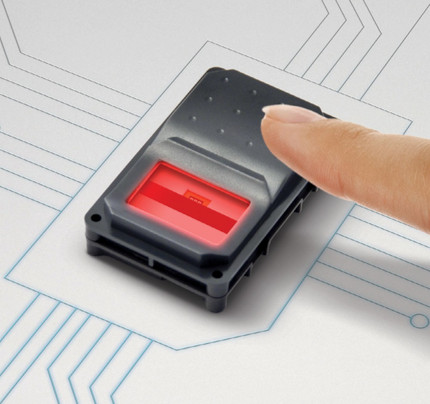

The MorphoSmart™ CBM E3 (Manufacturers part number: 293658770) is a high security compact fingerprint module. It utilises Safran Morpho’s patented optical technology and biometric algorithms, which have been tested and certified worldwide for its high accuracy and performance as well as their high levels of robustness. The MorphoSmart™ CBM E3 provides a cost effective and easy to install solution for the fast and secure processing of high quality fingerprint images.

Please contact us for order quantities of 25+ units.

In stock (7 items available)
  • £98.95
Buy more for less:
1-4 items £98.95 / each
5-9 items £96.95 / each save 2%
10-24 items £93.95 / each save 5%
25 or more items £90.95 / each save 8%
Qty:
  • Weight
    0.0200 kg
  • SKU
    00000000109



SAFRAN MORPHOSMART™ CBM E3 - THE MOST COMPACT OPTICAL MODULE ON THE MARKET

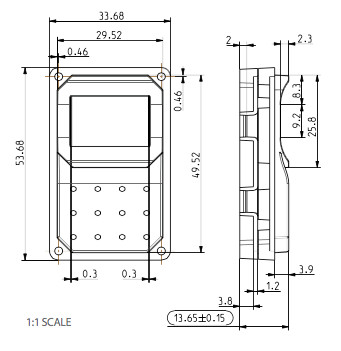

Its flat design (13.65mm height), small footprint (53.7*33.7mm) and very light weight (20g) make them the ideal components for integration into compact and mobile products.

MORPHOSMART™ CBM-E3: BEST IN SERIES, BEST IN CLASS

The CBM E3 incporates a number of key additional security features over and above those in its sister product the MorphoSmart CBM V3.

Enhanced image quality The CBM-E3’s extremely fine tuned design produces a fingerprint image certified PIV IQS by the FBI. The reference standard in terms of single fingerprint image quality (equivalent to ISO 19794-4:2011 Annexure B) was defined to ensure in particular interoperability between multiple solutions.
Fake Finger Detection The CBM-E3 detects a large panel of counterfeit fingerprints, including but not limited to those made with latex, gelatin, Plasticine, Kapton, transparent film, silicone, rubber, Play-Doh, graphite or paper.

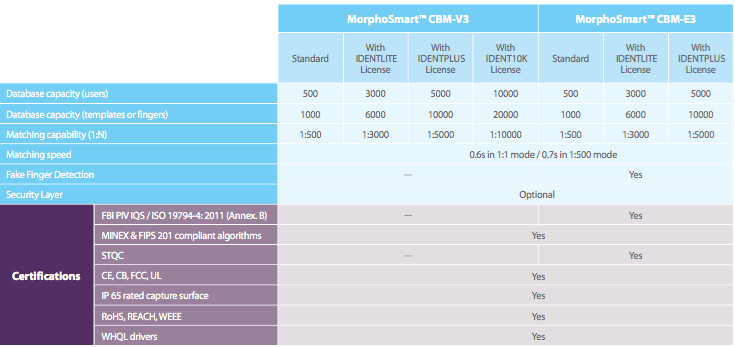

The CBM E3 is one of two models in the range the other fingeprint reader module is the CBM V3. A comparison of each model and their features is shown below:



HIGH QUALITY FINGERPRINT ACQUISITION

Optical technology offers superior image quality

• High performance sensor: 500 dpi, 256 grey levels

• Available output formats include RAW, iso 19794-4or WSQ- compressed (under license) images

Lessons learnt from real world deployments put into practice

• Mechanical/visual guides ensure intuitive finger placement

• Interfaces display key information to help users: live image, messages (position, pressure etc.) and fingerprint quality score

Large acquisition surface for optimised capture and repeatable placement

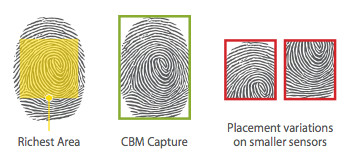

The CBM E3’s capture surface (14x22mm) ensures that the richest area on fingerprints is systematically captured time after time. The acquisition surface contributes significantly to the overall biometric performance: • It determines the amount of minutiae data that can be captured • Other, smaller sensors, allow different areas of the same finger to be presented with each placement, leading to poor data acquisition, narrow areas of overlap and matching errors.

Robustness

  • IP65 rated sensing area (sealed against dust and liquids)
  • Resistance to electro-static discharges, scratches and shocks
  • Operating conditions: -10°c to 50°c / 10% to 80% RH
  • Storage conditions: -20°C to 70°C / 5% to 95% RH

Standard interfaces: USB and Serial (TTL Open-Collector)

  • Comprehensive Software Development Kit: MorphoSmart™ SDK. Available for Windows, Linux and Android Platforms
  • Includes a BioAPI interface

NB: Low level protocol (ILV) is also available

KEY FEATURES AND SECURITY FEATURES





SIMPLE INTEGRATION INTO A VARIETY OF SOLUTIONS

The Morphosmart™ CBM E3 is designed for quick and easy integration into a variety of devices and applications: mobile devices, POS applications, ATM's and kiosks, vending machines, access control and time & attendance terminals, keyboards, alarm systems, safes, printers, locker systems, voting machines and remote controls, etc.

Integrators can simply and easily add the advantages of the CBM E3 fingerprint module to their applications, without having specific knowledge of biometrics.

• The foremost compact optical fingeprint module currently available

• Fast integration of fingeprint recognition into any development

• Highest quality fingerprint collection

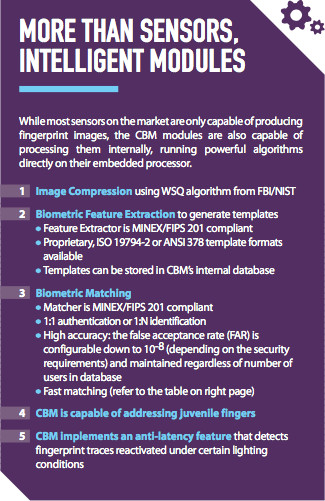

• Embedded processing capabilities: MINEX compliant Coder & Matcher inside

• FBI PIV IQS certification and fake finger detection

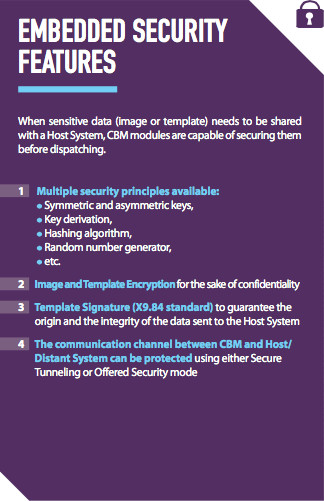

• Extensive security features, incorporating digital signature and data encryption

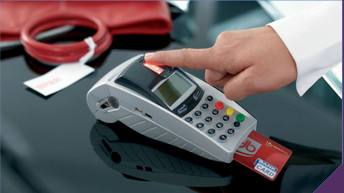

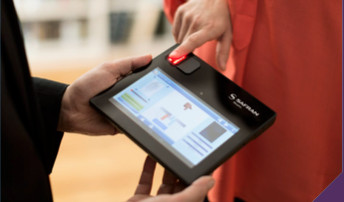

CBM E3 for Mobile Applications  CBM E3 for POS Applications

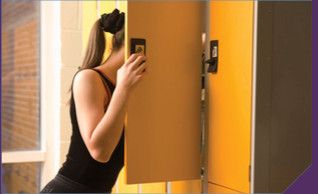

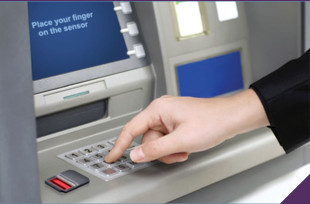

CBM E3 for Kiosk and ATM Applications CBM E3 for Locker and Gym Applications

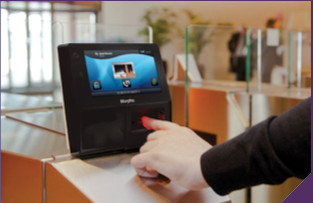

CBM E3 for Access Control and Time and Attendance Solutions



To contact us on this product please click here: [email protected] or use our contact us form

  • Manufacturer
    Safran / Morpho / Sagem
